Set Up & User Guide

• What's in the box?

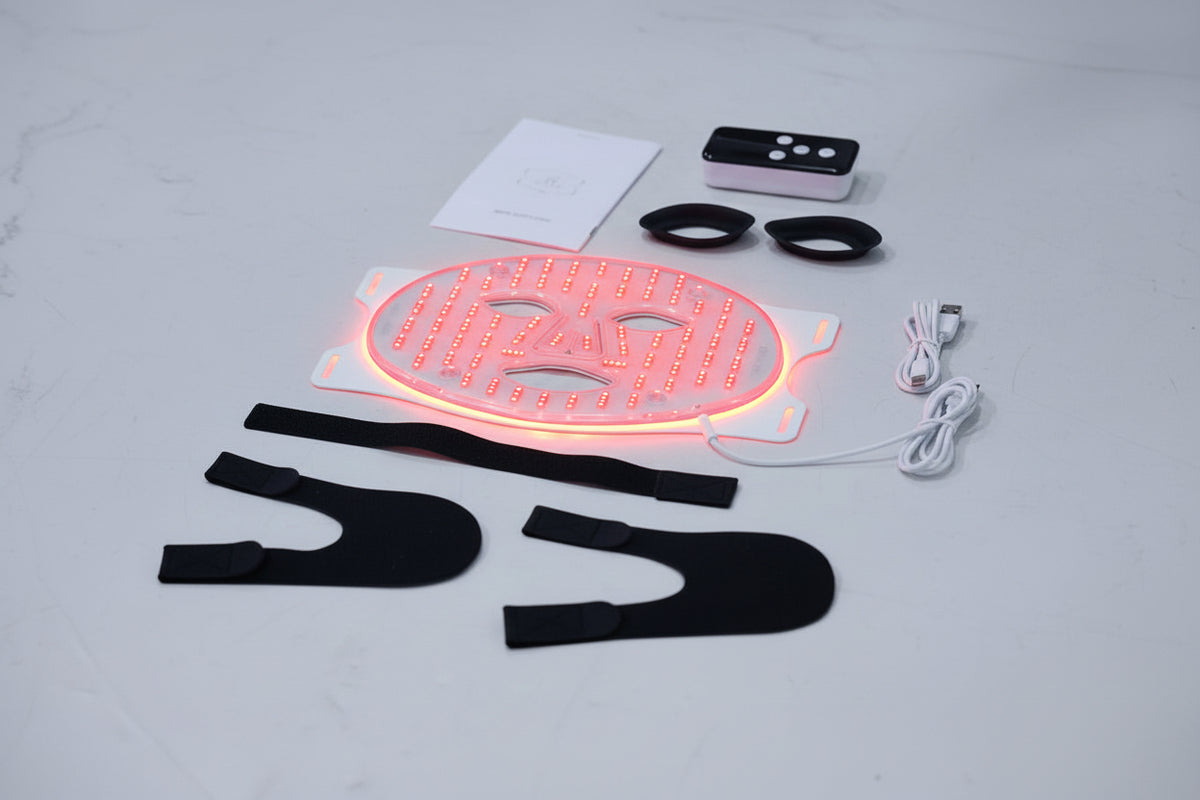

  Your KOVE LED Light Mask set includes:

  • 1 x LED light mask
  • 1 x cooling ice pack
  • 1 x instruction manual
  • 1 x controller
  • 1 x USB charging cable
  • 3 x adjustable straps
  • 2 x eye protection pads

• First Time Setup

  Before using the mask for the first time, you need to fully charge the controller.

  • Charging time is approximately 4–5 hours

  • The indicator light flashes while charging

  • The indicator light stays on when charging is complete

  So let's get started!

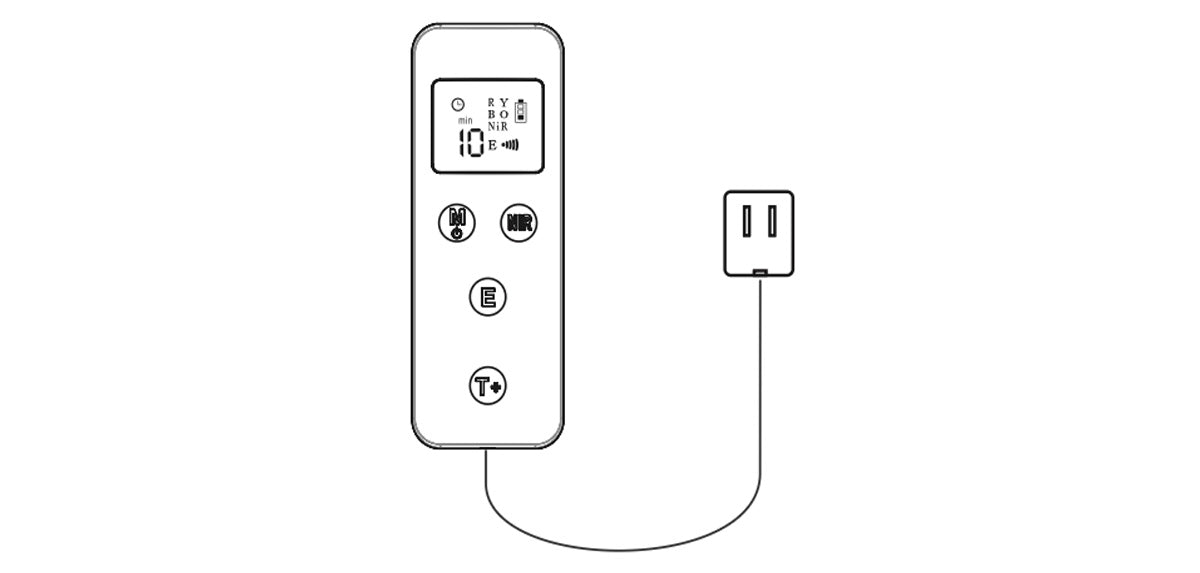

• Step 1: Charge the controller



  • Use the supplied USB cable
  • Plug the controller into a suitable power source
  • Wait until the charging indicator changes from flashing to solid
  • Important: Do not use the device while it is charging.

• Step 2: Connect the mask straps

  To connect the straps to the mask simply follow the video above.

• Step 3: Activate Cooling (Optional, Recommended)

  The LED mask comes complete with a cooling ice pack. Cooling can help the skin feel soothed and refreshed, and may help reduce puffiness and visible redness.

  If you would like a cooling treatment:

  • Place the ice pack in the freezer for 15–20 minutes

  • Do not freeze it for longer than 1 hour

  • Once chilled, fit it into the mask before use

  • Cooling may stay effective for around 2–3 hours after chilling

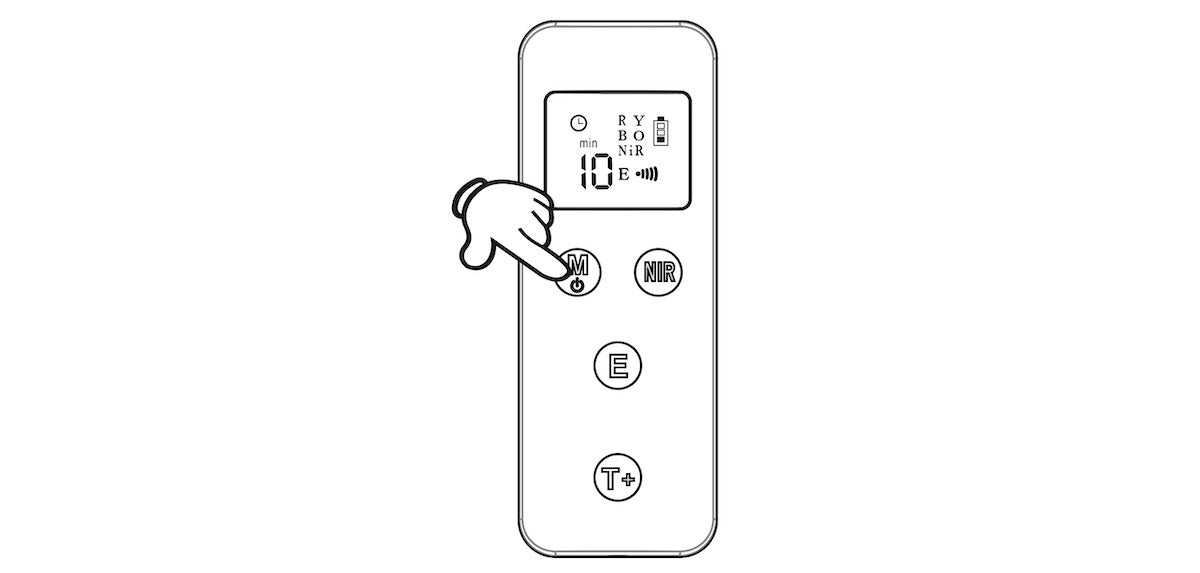

• Step 4: Choose Your Light Mode



  Choose the light mode that best matches your skin’s needs and the results you want to focus on. To change the light mode press the M button to scroll through the different modes. Each setting works differently, so the guide below explains what each light is designed to help with.

  Red Light (630nm) – Renewal

  Helps support collagen production and improve skin elasticity.

  Blue Light (460nm) – Clarity

  Helps target acne-causing bacteria and reduce breakouts.

  Yellow Light (590nm) – Balance

  Helps improve skin tone and reduce visible redness.

  Near Infrared (850nm) – Deep Repair

  Works below the skin’s surface to support recovery, hydration, and circulation.

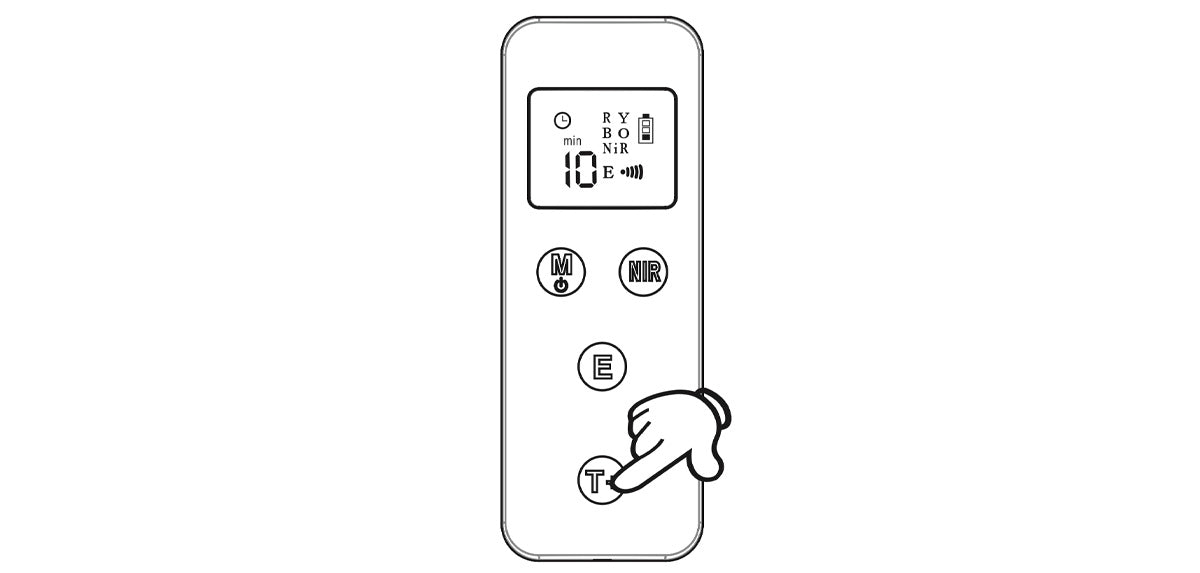

• Step 5: Set Your Treatment Time



  Using the controller, you can adjust the treatment time to suit your skin’s needs. Simply press the T button to scroll through the treatment time in minutes.

  • Treatment times: 10 / 15 / 20 / 25 / 30 minutes

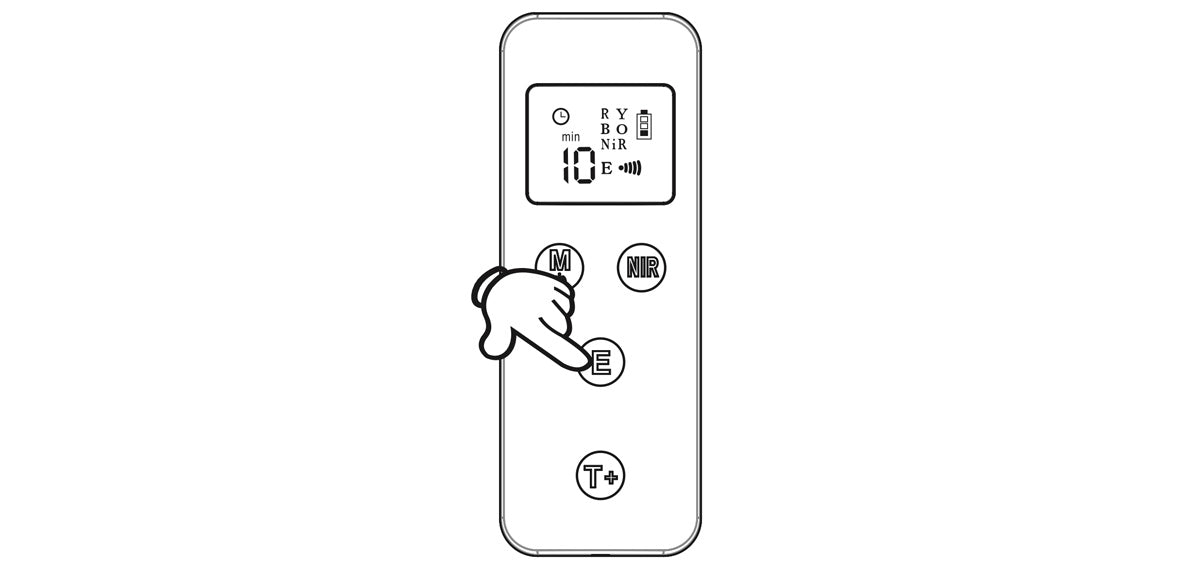

• Step 6: Set The Light Intensity



  Using the controller, you can adjust the intensity of the light to suit your skin’s needs. Simply press the E button to scroll through the treatment time in minutes. Choose between 3 intensity levels:

  • Low / Medium / High

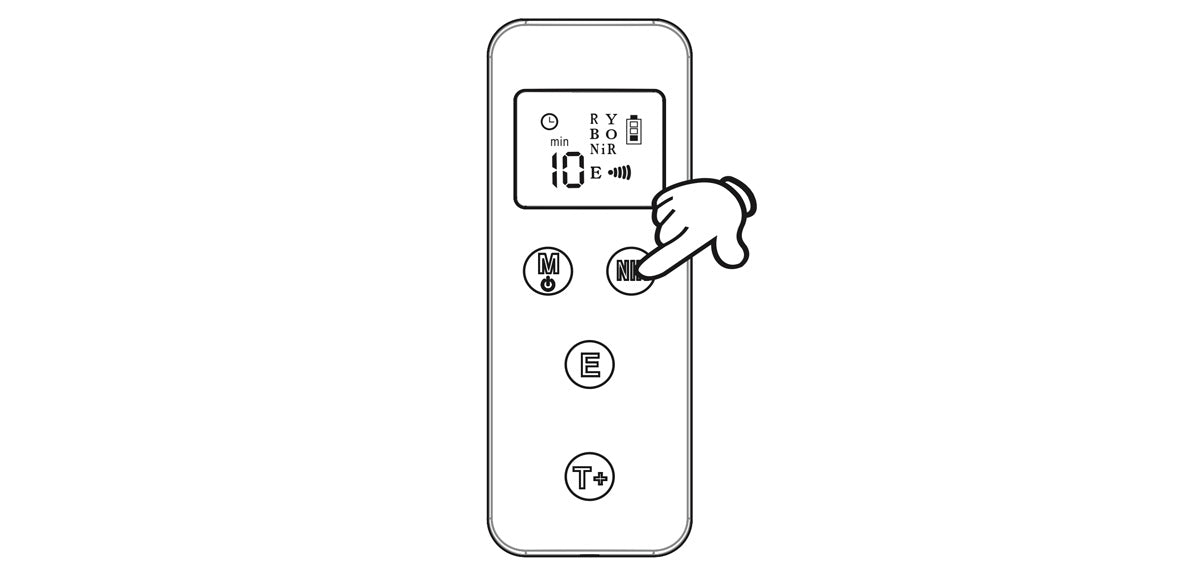

• Step 7: Use Near Infrared (Optional)



  Near Infrared works beneath the skin’s surface to support recovery and overall skin health. It can be used alongside the other light modes to give deeper support for hydration, circulation, and repair.

  Using the controller, you can turn the Near Infrared on and off. Simply short press the NIR button to turn on or off.

• Set Up Complete - First Use of Your Mask

  Once your mask is assembled, place it comfortably over your face, adjust the straps so it feels secure, then connect the controller and choose your light mode, intensity, and treatment time. For your first session, start slowly by testing the mask on your skin for 1 minute, begin on a low intensity, and only continue if your skin feels comfortable.

  To get the best results, use the mask consistently rather than doing too much too soon. A good starting routine is 15–25 minutes per session, 3–4 times per week, increasing time or intensity gradually based on your skin’s sensitivity and how it responds over time.

• Quick Routine Guide

  Now that you are set up let's run through a few routines to get you started with your mask. This quick guide will help you choose the best light setting for your skin goals and build a routine that feels simple and easy to follow. Start gently, pay attention to how your skin responds, and adjust the mode, intensity, and session length to suit your comfort over time.

  For Breakouts

  • Blue light

  • Low to medium intensity

  • 15–20 minutes

  • 3–4 times per week

  • Optional: add near infrared for extra support


  For Fine Lines and Skin Renewal

  • Red light

  • Medium intensity

  • 20–25 minutes

  • 3–4 times per week

  • Optional: add near infrared


  For Redness or Sensitive Skin

  • Yellow light

  • Low intensity

  • 15–20 minutes

  • 2–3 times per week

  • Optional: use with the cooling ice pack

• Important Safety Notes

  For a safe and comfortable experience, always use the mask exactly as directed and begin with the lowest settings if you are new to LED light therapy. Do not use the device while it is charging, avoid over-freezing the cooling insert, and stop use if your skin feels unusually irritated or uncomfortable.

  To recap, remember:

  • Do not use the mask while charging

  • Do not freeze the ice pack for longer than 1 hour

  • Start with a low setting and increase gradually

  • Stop use if you feel discomfort and allow your skin time to settle before trying again

• Product Specification

  Product name: KOVE Light Mask
  Timer settings: 10 / 15 / 20 / 25 / 30 minutes
  Charging input: 5V 2A
  Main materials: ABS / Silicone
  Battery capacity: 3.7V 3000mAh
  Dimensions: 343 × 232 × 58 mm
  Weight: 220 g
  Charging port: Type-C
  Charging Duration: 2 - 3 Hours
  Energy Density: 343 x 232 x 58mm
  Certification: CE
